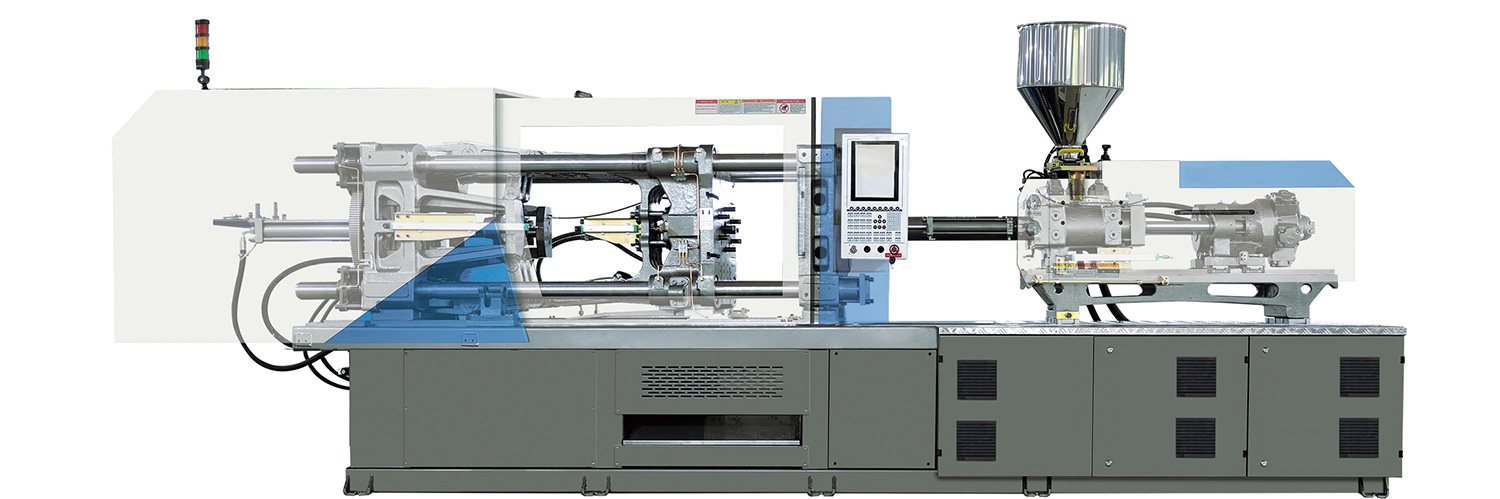

N Series Injection Molding Machine

Newly strengthening designed T Slot locking unit with double toggle five joint clamping system.High rigidity platen for reliable strength,high speed,and stable movement.

Maintenance-free self-lubricating graphite bushing for toggle injection moulding machines. Longerdurability,smoother movement,lower noise and vibration levels,and resistance to wear and corrosion.

High degree of customization to meet different kinds of requirements.Strong expansivity,support IO, robot, temperature, DA and many other extensions at the same time.Applicable to all kinds of complex working conditions.Through communica tion control with INOVANCE drive.More able to achieve the characteristics of fast response,high precision and easy debugging.

Double cylinder system for stable multi-stage injection speed and pressuresetting,excellent plasticizing and high eficiency.Use of advanced LGS (Linear Guide Support) technology.Integrated design enhances the overall rigidity of the injection unit.No unnecessary friction.Fast forward and backward.Closed loop injection pressure control technology.

Clamping force

120T-800T

Servo System

Inovance

Injection Volume

200-5000cm3

Control System

EST

  • Clamping Unit

    Newly strengthening designed locking unit with double toggle five joint clamping system.High rigidity platen for reliable strength,high speed,and stable movement.T Slot structure and Hydraulic oil motor drive fast mold installation & adjustment.

  • Automatic PLC Controller

    Sanshun N Series equipped with an imported Double CPU computer-based large screen LCD controller.Powerful electrical control system with pre-set technical parameters,Data protection lock,bulk storage memory,and Real-time monitoring.

  • Electric Control Unit

    The electric parts are selected from world-famous brands like Techmation,Schneider,ABB,etc.

  • Servo System

    Servo system energy machine worked with closed-loop control stable system for low electricity consumption,high efficiency,fast response time and low noise

  • Injection Unit

    Double cylinder system injection mechanism for stable multi-stage injection speed and pressure setting and excellent plasticizing and high efficiency.High torque motor driven unit with less energy consumption.

  • specially designed screw barrel more wear-resistant,corrosion-resistant,improve service life.

  • Specially-designed screw and cylinder have quicker planking and better plasticization effect.The external cylinder heating ring can selectively install specially designed heat preservation device to improve the plasticization quality.

  • Perfectly designed chromium plated PVC screw barrel with high-efficiency cooling fans for PVC, UPVC. CPVC, Powder PVC which can stabilize PVC material temperature, stable injection molding and create a high plasticizing rate.

  • Enlarged machine safety doors especially for PVC molds with big oil cylinders,easy for mold installation and safer for the operator.

  • Perfectly designed PET screw barrel,highly increases the plasticizing speed and shot weight,lowers the plasticizing temperature and AA value.

  • Hydraulic System

    Specially designed stable and high-reliability control system with imported advanced hydraulic components,equipped with high precision suction fiter and the cooling device.

  • Enlarged ejector stroke and ejecting force, suitable for different kinds of PET preform molds

  • High tensile chrome-plated bars for precision and high-speed mould closing &opening

  • High efficiency large diameter screw barrel,not only enlarged the injection volume,but also shorten the charging time.

  • Enlarged the power system ensures high injection speed,lowers the production cycle,and improves the production efficiency.

Advantages

Improved Precision & Accuracy
Linear guides provide smooth and controlled movement of machine components, such as the injection unit and mold platen.
Learn more >
Linear guides provide smooth and controlled movement of machine components, such as the injection unit and mold platen.
They reduce misalignment and deviation, ensuring consistent shot placement and mold closing.
Reduced Friction & Wear
Compared to traditional sliding mechanisms, linear guides reduce friction, leading to less wear and tear on machine components.
Learn more >
Compared to traditional sliding mechanisms, linear guides reduce friction, leading to less wear and tear on machine components.
This extends the lifespan of the machine and minimizes maintenance needs.
Higher Efficiency & Energy Savings
Reduced friction means less energy is required to move parts, improving energy efficiency.
Learn more >
Reduced friction means less energy is required to move parts, improving energy efficiency.
Faster and smoother movements increase the overall cycle time of the injection molding process.
Better Load Distribution
Linear guides ensure even load distribution, reducing stress on machine components. This helps in handling high clamping forces more effectively, improving durability.
Learn more >
Linear guides ensure even load distribution, reducing stress on machine components. This helps in handling high clamping forces more effectively, improving durability.
Using linear guides in injection molding machines results in better precision, efficiency, durability, and lower operational costs. These benefits make them an ideal choice for manufacturers aiming to improve productivity and part quality.
